ISO9001 1.3MPa Compressed Air Filter Element Oil Water Separator
High Quality Compressed Air Gas Water Separator for Air Compressors
Product Description:
Removing water/vapor in compressed air is the primary task of
compressed air purification treatment, the water entrained
impurities in compressed air will corrode pipes, valves,
instruments, and equipment, resulting in increased production
costs.
The gas-water separator is a perfect combination of the principle
of centrifugation and flow collection, gravity, and collision
mechanism, which can effectively remove the liquid water mist of
compressed air. It is a critical pre-treatment device for
high-efficiency compressed air filters and refrigerated and
adsorbed compressed air dryers.

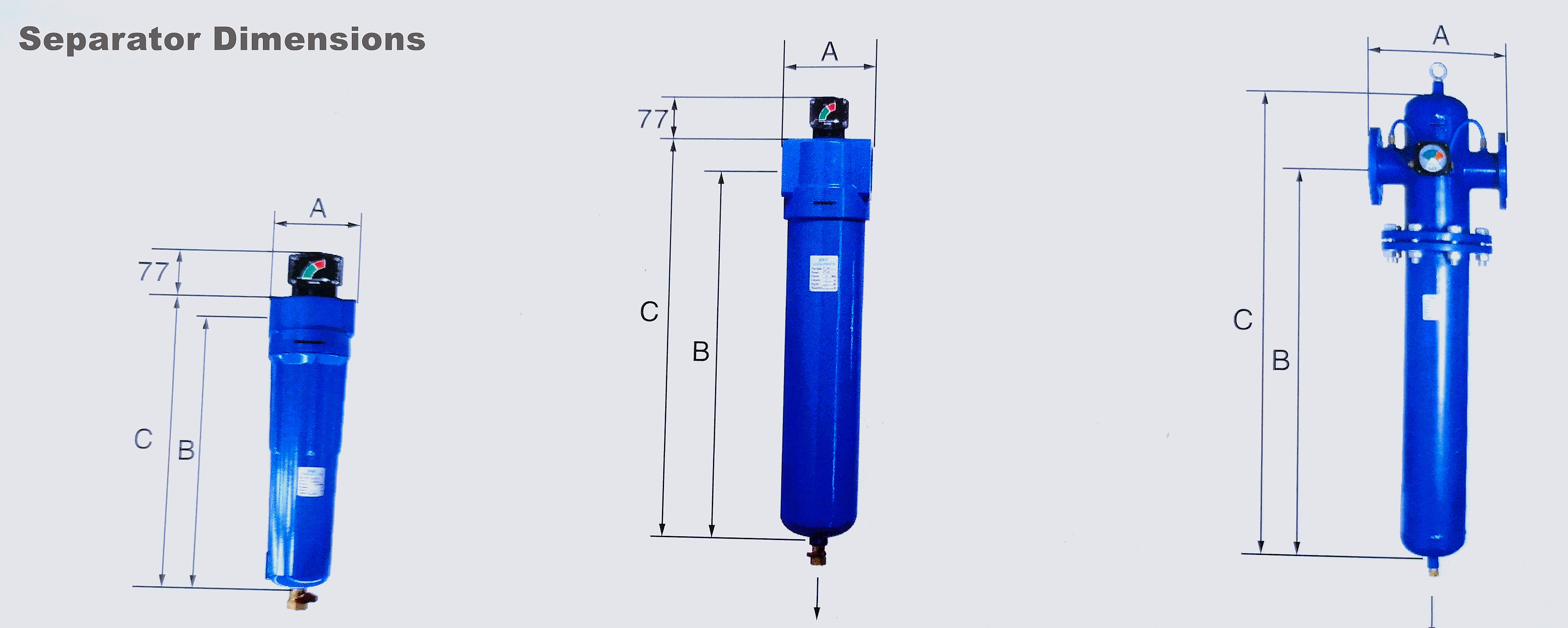

| Model | Connector | Flow Rate(NM3/min) | Dim. A | Dim. B | Dim. C |
| AWS16-15 | G1/2'' | 1.5~2.4 | 92 | 240 | 263 |
| AWS16-20 | G3/4'' | 2.5~3.6 | 92 | 240 | 263 |
| AWS16-25 | G1'' | 3.7~5.4 | 92 | 240 | 263 |
| AWS24-40 | G1 1/2'' | 5.5~13.0 | 120 | 340 | 372 |
| AWS36-50 | G2'' | 14.0~29.0 | 152 | 584 | 624 |
Features:
- Pre-treatment for refrigerant or desiccant
- Robust structure
- 99% filtration efficiency
Applications:
Detailed Pictures:
|
|
